Beijia Aluminum has two production line of 75MN and 25MN reverse double-actingextrusion, 15T and 5T melting and casting line, 1000T forging line,homogenizing furnace, aging furnace, vertical quenching furnace, tension stretching machine, straightening machine and HaasVF5D /4D vertical machining center from the U.S., DT-1 drilling center, Mikron Riga HEM800/1000 vertical machining center, gantry machining center, horizontal machining center and other equipment, altogether more than 280 sets. The technology R&D center is equipped with more than 30 sets of testing equipment, for example, Shimadzu direct reading spectrometer, metallographic microscope, fatigue testing machine, universal testing machine, etc.
| ALLOY | TEMPER | SPECIFICATION (MM) | ||
| OUT DIAMETER(MM) | WALL THICKNESS(MM) | INNER HOLE(MM) | ||
| 1A99 1A90 1100 1070A 1060 1200 1035 3003 | O H112 | φ40-φ300 | ≥3.5 | φ20-φ240 |
| 6061 6063 6101 6101B 6351 6082 6A02 | O,H112,T6,T6XX | φ40-φ300 | ≥3.5 | φ20-φ240 |
| 5A02 5A03 5A05 5A06 5A56 5052 5083 | O H112 | φ60-φ300 | ≥4.5 | φ20-φ240 |
| 2A11 2A12 2017 2024 2224 2012 | O, H112,T4,T351 | φ60-φ300 | ≥4.5 | φ20-φ240 |

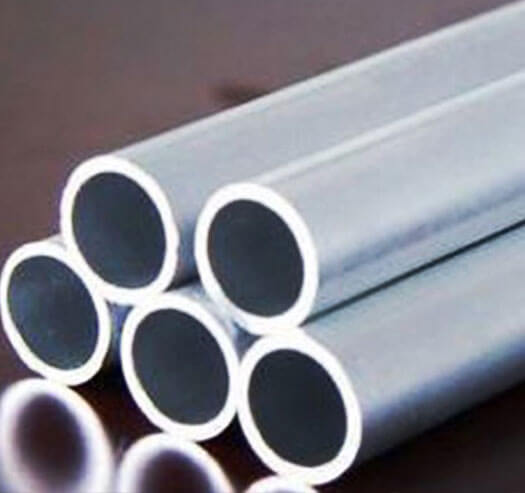

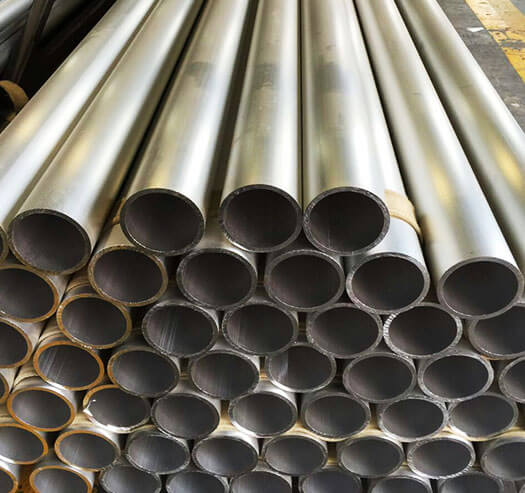

Aluminum tube refers to a metal tubular material made of pure aluminum or aluminum alloy by extrusion and processing into a hollow material along its longitudinal length.There may be one or more closed through holes with uniform wall thickness and cross section for delivery in straight or roll form.Widely used in automobile, ship, aerospace, aviation, electrical appliances, agriculture, electromechanical, household and other industries.
If you need our products please write down any questions, we will reply as soon as possible.
