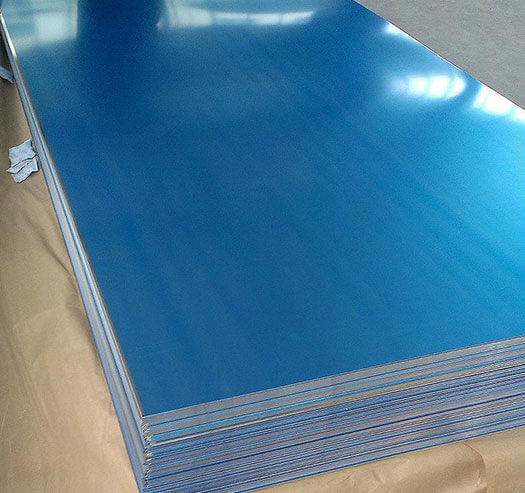

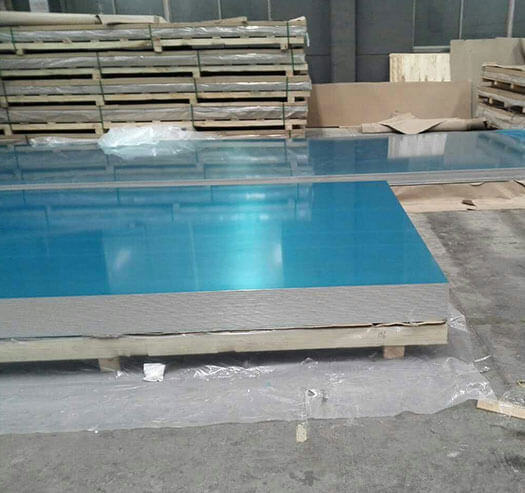

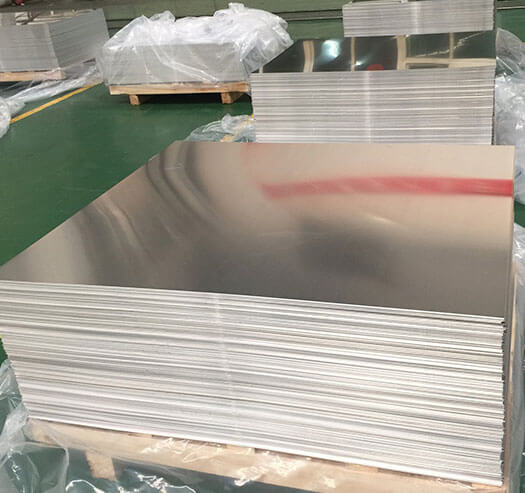

5454 Aluminum Sheet/Plate

Thickness Range: 0.5-240mm

Width Range: 500-2650mm

Lead time: 30-45 days after PO.

Introduction

5454 aluminium alloy is an alloy in the wrought aluminium-magnesium family (5000 or 5xxx series). It is closely related to 5154 aluminium alloy. As an aluminium-magnesium alloy, it combines moderate-to-high strength with excellent weldability. Like 5154, 5454 aluminium is commonly used in welded structures such as pressure vessels and ships. As a wrought alloy, it can be formed by rolling, extrusion, and forging (although forging is not common), but not casting. It can be cold worked to produce tempers with a higher strength but a lower ductility. It is generally not clad.

Specifications
Alloy Temper Thickness (mm) Width (mm) Length (mm) Remark
5454 O, H111, H112, H32, H34, H36, H38 0.5-240 500-2650 1000-11800 PVC or Paper Interleaved
Application

The 5454 grade aluminum was developed for use in the manufacture of aluminum sheets into tank/dry bulk trailers and dump bodies. Qualities include high strength, excellent weldability, formability, and corrosion resistance. Typical applications includes:

● Pressure vessels

● Boilers

● Road transport bodies

● Welded Structures

● Aluminum Fuel tankers

● Dump bodies
