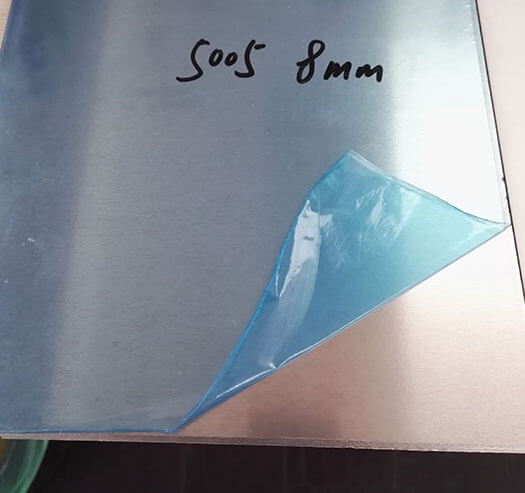

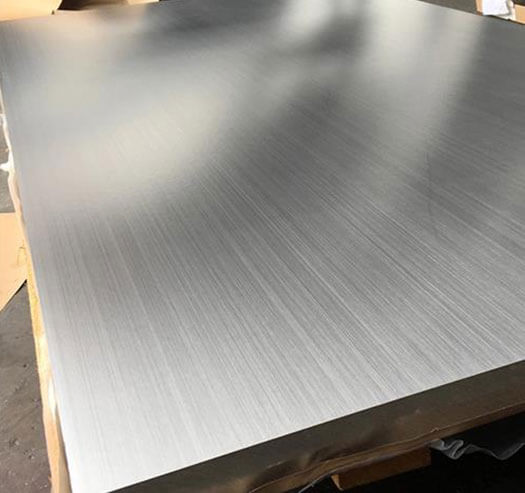

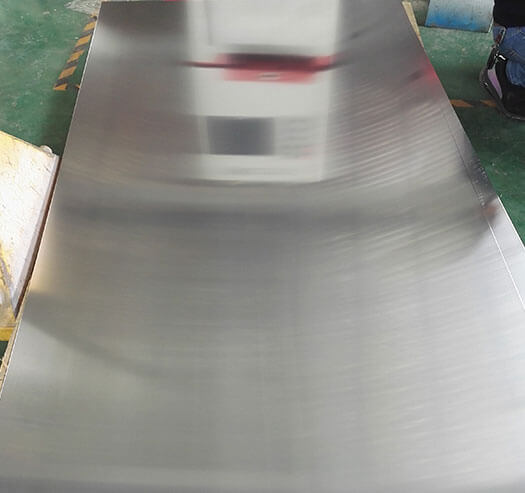

5005 Aluminum Sheet

Thickness Range: 0.5-240mm

Width Range: 500-2650mm

Lead time: 25-30 days after PO.


Alloy 5005 is a member of the 5000 series of aluminium-magnesium wrought alloys which is non-heat-treatable 0.8% magnesium alloy commonly available in coil and sheets form. The 5000-series magnesium alloys have a high strengths because of the magnesium addition; 5005 has only a very small addition of magnesium so is the least strength of these series of alloys. The alloy is hardenable to a significant degree by cold working, enabling a series of “H” tempers but again these do not achieve the high strengths of corresponding tempers in other alloys such as 5052 or 5083.

Alloy Temper Thickness (mm) Width (mm) Length (mm) Remark
5005 O, H14, H24, H32, H34, H36, H38 0.5-240 500-2650 1000-11800 PVC or Paper Interleaved

5005 aluminum sheet is used for electrical conductor wire, cooking utensils, appliances and widely used as sheet in decorative and architectural applications.
